A megoldás új épületekhez és felújításokhoz egyaránt alkalmas, mivel fenntartható alternatívát kínál
a hagyományos fosszilis fűtőrendszerekhez képest, és könnyen integrálható a meglévő vízrendszerbe,
például fan coil berendezésekbe, padlófűtésbe vagy háztartási melegvíz-tartályokba.

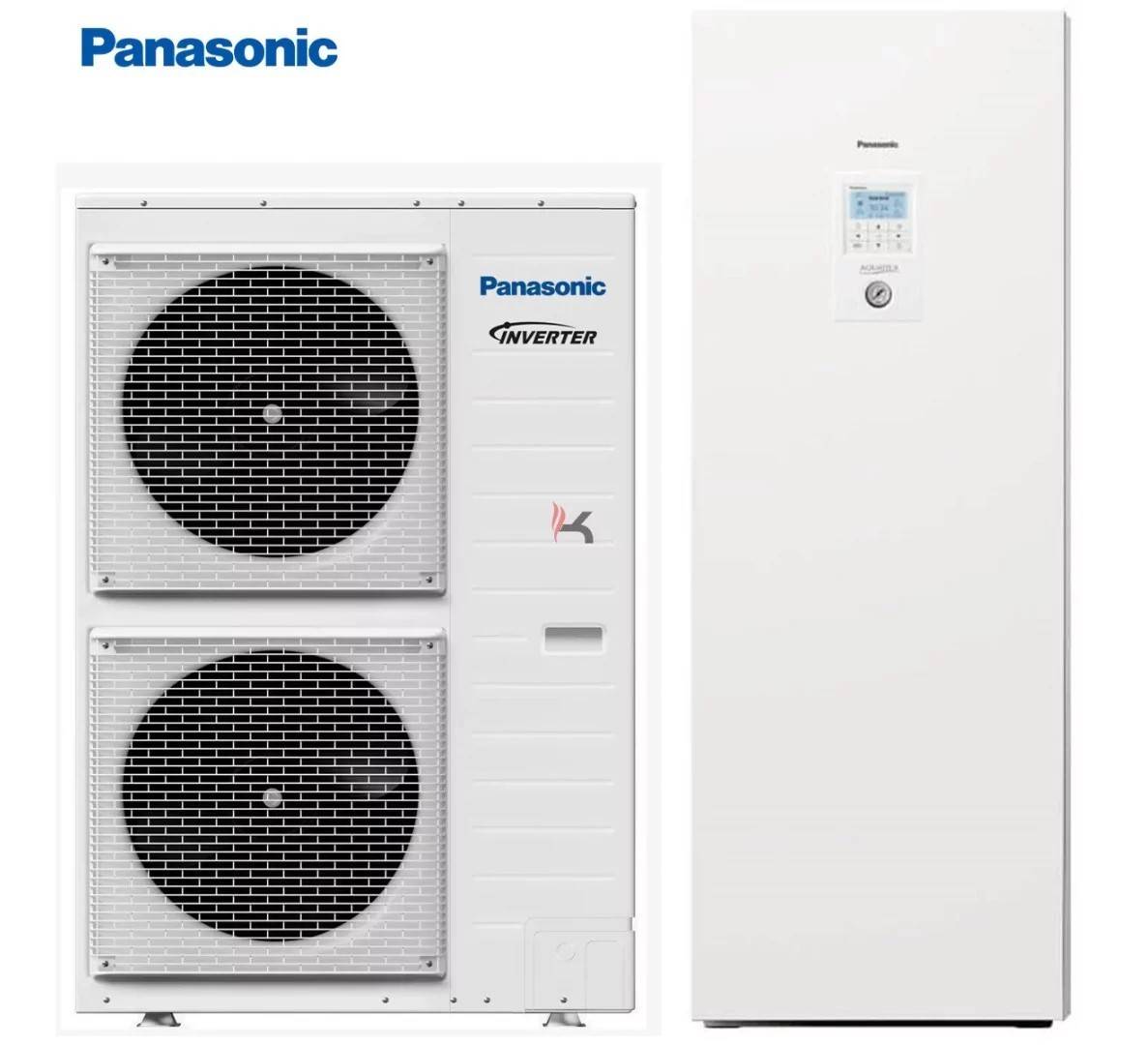

Mostantól nagyobb All in One változatban is kapható, tökéletes a nagy HMV-igényű otthonok számára
A megnövelt kapacitás ellenére kis helyigénye mindössze 599 x 602 mm – a hagyományos készülékekhez hasonlóan.
1 fázisú vagv 3 fázisú, K generációs egység · R32 | |||
|---|---|---|---|
| 16 kW | |||
| Heating capacity (A +7°C, W 35°C) | kW | 16,00 | |
| COP (A +7°C, W 35°C) | 4,38 | ||
| Heating capacity (A +2°C, W 35°C) | kW | 16,00 | |
| COP (A +2°C, W 35°C) | 3,10 | ||
| Heating capacity (A -7°C, W 35°C) | kW | 16,00 | |
| COP (A -7°C, W 35°C) | 2,39 | ||
| Cooling capacity (A 35°C, W 7°C) | kW | 13,40 | |
| EER (A 35°C, W 7°C) | 2,64 | ||
| Pipe length range | m | 3 és 30 között | |
| Indoor dimension (Height) | mm | 1.642 | |
| Indoor net weight | kg | 103 | |
| Outdoor dimension (Height) | mm | 1.340 | |
| Outdoor net weight | kg | 103 | |
| Indoor sound pressure (Heat) | dB(A) | 33 | |
| Refrigerant (R32) / CO2 Eq. | kg / T | 1,83 / 1,235 | |
| Indoor dimension (Width) | mm | 599 | |
| Indoor dimension (Depth) | mm | 602 | |
| Pipe diameter (Liquid) | Inch (mm) | 1/4 (6,35) | |
| Pipe diameter (Gas) | Inch (mm) | 1/2 (12,70) | |
| Pipe length for additional gas | m | 10 | |
| Additional gas amount | g/m | 30 | |
| Kit | KIT-AXC16K9E8* | ||
| Indoor unit | WH-ADC16K9E8 | ||
| Outdoor unit | WH-UXZ16KE8 | ||
| Heating capacity (A +7°C, W 55°C) | kW | 16,00 | |
| COP (A +7°C, W 55°C) | 2,72 | ||
| Heating capacity (A +2°C, W 55°C) | kW | 16,00 | |
| COP (A +2°C, W 55°C) | 2,07 | ||
| Heating capacity (A -7°C, W 55°C) | kW | 16,00 | |
| COP (A -7°C, W 55°C) | 1,71 | ||
| Cooling capacity (A 35°C, W 18°C) | kW | 13,40 | |
| EER (A 35°C, W 18°C) | 2,64 | ||
| Heating average climate. Seasonal energy efficiency (W 35°C / W 55°C) | ηs % | 176 / 129 | |
| Heating average climate. Seasonal energy efficiency (W 35°C / W 55°C) | SCOP | 4,46 / 3,31 | |
| Heating average climate. Energy class (W 35°C / W 55°C) (1) | A+++ to D | A+++ / A++ | |
| Heating warm climate. Seasonal energy efficiency (W 35°C / W 55°C) | ηs % | 232/160 | |
| Heating warm climate. Seasonal energy efficiency (W 35°C / W 55°C) | SCOP | 5,88 / 4,09 | |
| Heating warm climate. Energy class (W 35°C / W 55°C) (1) | A+++ to D | A+++ / A+++ | |
| Heating cold climate. Seasonal energy efficiency (W 35°C / W 55°C) | ηs % | 150 / 125 | |
| Heating cold climate. Seasonal energy efficiency (W 35°C / W 55°C) | SCOP | 3,83 / 3,20 | |
| Heating cold climate. Energy class (W 35°C / W 55°C) (1) | A+++ to D | A++ / A++ | |
| Indoor sound pressure (Cool) | dB(A) | 33 | |
| Water pipe connector | Inch | R 1¼ | |
| A class pump (Number of speeds) | Változó sebesség | ||
| Heating water flow (∆T=5 K. 35°C) | L/min | 45,9 | |
| Water volume | L | 185 | |
| Maximum water temperature | °C | 65 | |
| Material inside tank | Rozsdamentes acél | ||
| Tapping profile according EN16147 | L | ||
| DHW tank ERP average climate efficiency rating (2) | A+ to F | A | |
| DHW tank ERP warm climate efficiency rating (2) | A+ to F | A+ | |
| DHW tank ERP cold climate efficiency rating (2) | A+ to F | A | |
| DHW tank ERP average climate η | ηwh % | 107 | |
| DHW tank ERP warm climate η | ηwh % | 128 | |
| DHW tank ERP cold climate η | ηwh % | 84 | |
| Outdoor dimension (Width) | mm | 900 | |
| Outdoor dimension (Depth) | mm | 320 | |
| Elevation difference (in/out) | m | 20 | |
| Operation range - Outdoor ambient (Heat) | °C | -28 ~ +35 | |
| Operation range - Outdoor ambient (Cool) | °C | +10-től +43-ig | |
| DHW tank ERP average climate COPdHW | COPdHW | 2,68 | |
| DHW tank ERP warm climate COPdHW | COPdHW | 3,20 | |
| DHW tank ERP cold climate COPdHW | COPdHW | 2,10 | |
| Outdoor sound power (Heat) (3) | dB(A) | 65 | |
| Electrical information | WH-ADC16K9E8 | ||
| Electric backup heater | kW | 9,00 | |
| Recommended minimum cable size, supply 1 (5) | mm² | 5x1,5 | |
| Recommended minimum cable size, supply 2 (5) | mm² | 5x2,5 | |
| Recommended fuse | A | 20 / 20 | |
